Developer’s Guide

Use this guide to work on the Cree Intelligent Dictionary repo.

After you follow the steps below to get set up, this typically becomes as easy as running

pipenv shell

and then, inside that shell, running

foreman start

But the first time you try to do that, it will take a bit of work to get set up. If you have trouble, please contact us and/or file issues so that we can improve the process and/or this documentation.

Installing for the first time

Clone the repo and cd into it, as usual:

git clone https://github.com/UAlbertaALTLab/morphodict.git
cd morphodict

And then, to pull some large data files not stored directly in the GitHub repository, run:

git lfs install --local && git lfs fetch && git lfs checkout

If this fails, you can have homebrew install Git LFS with brew install git-lfs.

Install Python

Get Python 3.9 and Pipenv.

Within the directory, install all Python dependencies:

pipenv install --dev

If you run into trouble, the following notes may help:

• On Ubuntu 20.04, if pipenv can’t find Python 3.9 and complains about there being no module named distutils.command, do apt install -y python3-distutils

• On Ubuntu, if you get an error running pipenv that says "Python.h" not found, install the python3.9-dev package

• On macOS, the official version of Python distributed by python.org is more likely to work successfully than anything from homebrew or elsewhere.

  Go to https://www.python.org/downloads/ on your mac and click the yellow, easy-to-overlook button to “Download Python 3.9.x” (any 3.9.x version is fine) underneath the “Download the latest version for macOS” heading.



• On macOS, if the pipenv command is not found, you can try:

  python3.9 -m ensurepip --user --upgrade
  python3.9 -m pip install --user --upgrade pipenv


  and then run python3.9 -m pipenv install --dev. Running python3.9 -m pipenv does the same thing as running pipenv is supposed to, but is more likely to work if you have multiple versions of Python and/or pipenv installed, or if you haven’t adjusted your shell’s PATH.

• On macOS, once in the pipenv shell, you can check exactly which python you are using by running

  ls -l $(which python)


  If it is not /Library/Frameworks/Python.framework/Versions/3.9/bin/python3.9, you can make it be that with

  pipenv install --dev \
      --python=/Library/Frameworks/Python.framework/Versions/3.9/bin/python3.9


Install NodeJS

Install NodeJS version 10 or greater.

With Node installed, install all of the JavaScript dependencies using npm:

npm install

Environment

Create a file named .env in the project root using the following template:

# .env
DEBUG=true
USE_TEST_DB=true
DEBUG_PARADIGM_TABLES=true

# This next line prevents `git push` from hanging if you do not have SSH access
# to our Git Large File Storage server. Such access is only needed if you want
# to commit changes to large binary files such as FSTs and vector models.
GIT_LFS_SKIP_PUSH=1

These are environment variables that affect whether Django is in debug mode and whether Django should use a smaller test database.

The environment variables go into effect when using pipenv shell, or by running a program with pipenv run. However, pytest is configured to always USE_TEST_DB, regardless of the .env file contents.

The development environment

Run pipenv shell so that all of the Python dependencies work:

pipenv shell

Run the bootstrap script

Running

./scripts/dev-bootstrap

creates the test databases for all supported languages.

Full database

Where to get full dictionaries is described in Current dictionary data.

Importing dictionaries

Once you have a full dictionary, import it into the database:

./${sssttt}-manage importjsondict [file]

There are three flags to know about for the importjsondict command: --purge, --incremental, and --atomic. They are described in the --help output. The default values depend on the specific language pair whether DEBUG is set; check the --help output to see what the defaults for your situation are.

On a newish laptop or desktop, importing the full Plains Create dictionary should take roughly 5-10 minutes.

In production, the same management command is used, it’s just that it takes a few more steps to get the dictionary content into the container, and to run importjsondict inside the container. The production import process is documented here.

The production import time for the Plains Cree dictionary is roughly:

• 20 minutes to import into a brand-new database, with much of that time being spent creating auto-translations.

• Nearly instantaneous to update up to a few hundred entries, when used with --incremental, plus at most a few tens of seconds of write out a new definition vector file.

• One hour to update every single single entry, which is the default when --incremental is not used, and which is required when you have added entirely new paradigm fields or have updated the generator FST or the phrase translation FSTs.

  This could be greatly sped up by using solid-state drives, and/or batching deletes in the importjsondict command.

In production

The following could all conceivably be automated.

• In production, the ~morphodict/src/sssttt/resources/dictionary folder is mounted into the docker container at /app/src/sssttt/resources/dictionary.

• If the file sssttt_dictionary.importjson is placed into that folder, possibly after being obtained from the git repo at /data/altlab.git, then importjsondict will automatically use it.

• To update a production database, run importjsondict inside the container:

  ~morphodict/morphodict/docker/helper.py manage sssttt importjsondict --purge [PATH_TO_FILE_IN_CONTAINER]


• It is strongly recommended to restart the container after updating the dictionary.

  cd ~morphodict/morphodict/docker && docker-compose restart sssttt


Compile JavaScript and CSS

Our JavaScript and CSS must be built before being used. Run this command:

npm run build

(note: using foreman automatically runs the underlying command in watch mode)

Running the development server

Install foreman with gem install --user foreman.

Then run foreman start to run the Django servers for all languages, as well as the Rollup watch process.

Then you can access the dictionary applications at various port numbers:

• itwêwina: http://127.0.0.1:8000/

• arpeng: http://127.0.0.1:8007/

• cwdeng: http://127.0.0.1:8005/

• srseng: http://127.0.0.1:8009/

Because cookies are not port-specific for historical insecurity reasons, you can only be logged in to one 127.0.0.1 development site at a time. If that becomes problematic, give each development site a unique hostname by adding the following to /etc/hosts:

127.0.0.1 arpeng-local
127.0.0.1 cwdeng-local
127.0.0.1 crkeng-local
127.0.0.1 srseng-local

Then you can access the sites with cookie isolation at http://crkeng-local:8000/, http://cwdeng-local:8005/, http://arpeng-local:8007/, and so on.

If you only want to run one dictionary, you can locally comment out lines in the Procfile.

Contributing

Once you have committed some changes with git, you can send a pull request via GitHub. The repo is public, so you do not need any special permissions or access to the main repository in order to send pull requests.

Create a ‘fork’, commit your changes to it, and then send a ‘pull request’ which requests that the morphodict maintainers ‘pull’ your changes into the main repository.

Note: If you get odd problems with git push seeming to hang, even when pushing to your own fork, you may be running into a firewall issue with Git LFS. There are two things you can try to fix that:

• Run GIT_LFS_SKIP_PUSH=1 git push instead of git push by itself

• Make sure GIT_LFS_SKIP_PUSH=1 is in your .env file and run git push from inside the pipenv shell

• Comment out the pushUrl line in the .lfsconfig file in your local checkout of the repository

Explanation: We use Git Large File Storage to manage some large files, such as already-built FSTs, outside the typical git storage mechanism. Updates to these files can be pulled by anyone over https, but pushing them requires ssh access to our server. You only need this ssh access if you are updating these files, and without setting up this access in advance, git’s attempt to use ssh is likely to hang while trying to log in to our server directly from the public internet.

Where are the JavaScript files?

They’re located in frontend/. They’re compiled by Rollup to the appropriate static directory. Note that Rollup allows you to import or require() npm modules in to the frontend JavaScript code; use this power wisely!

Rollup also minifies the JavaScript when DEBUG=False.

Where are the CSS files?

They’re located in frontend/css. They’re compiled by Rollup to the appropriate static directory. We’re using PostCSS to inline any @import’d CSS, and to provide a fallback for CSS custom properties (a.k.a., CSS Variables).

Rollup/PostCSS also minifies the CSS when DEBUG=False.

Unit Tests

pipenv run test

It recognizes the following:

• The Django settings module in setup.cfg (for pytest-django to work)

• --doctest-modules --mypy in Pipfile [script] (to enable doctest and Mypy tests)

• DEBUG=False USE_TEST_DB=True in .env

Cypress integration tests

npm test

Or, for interactive use:

npx cypress open

Eddie “sez”: My workflow is to have three terminals open:

1. Vim (editing files)

2. npm start — start the development server

3. npx cypress open — start Cypress interactively

Profiling Code

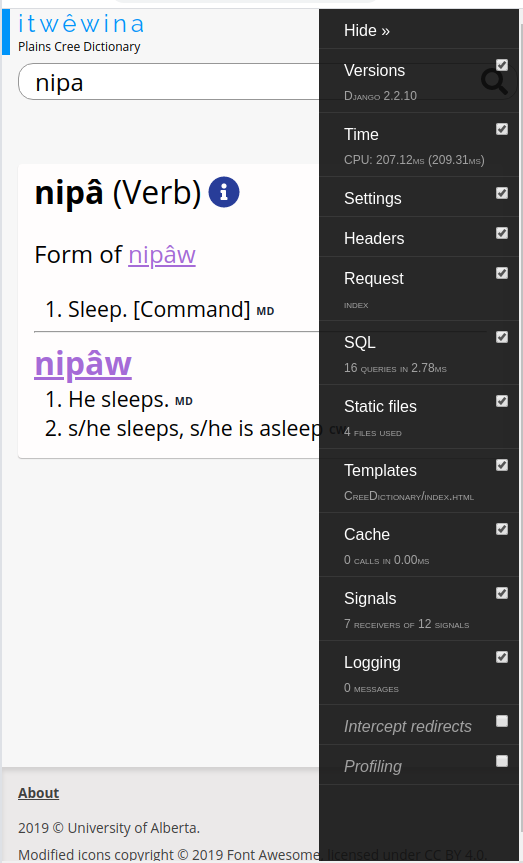

We use django-toolbar-toolbar. It provides great UI for stack tracing and SQL query profiling.

Format Python code

We format all Python code with Black

To run it on all of the files:

pipenv run format

Protip! Make this a part of your git pre-commit hook!

Optional: Install HFST

You don’t need this to run the dictionary, but having these tools installed can be useful if you are building, modifying, or directly interacting with FSTs.

On Mac:

brew install UAlbertaALTLab/hfst/hfst

On Windows:

Download hfst-latest.zip and unpack it. Add the hfst/bin folder to your system path.

On Linux:

sudo apt-get install -y hfst

For help, see HFSTOL installation guide.
